Instructions for Installing and Connecting Smart Crutch Tips

Installing
Smart Crutch Tips

*If you completely unscrewed the nut:
– first instal the nut on the crutch,
– then the rubber gasket,
– then spin the Smart Crutch Tip

“Comeback Mobility – Patient” app

Smart Crutch Tips App
Smart Crutch Tips App

Installation

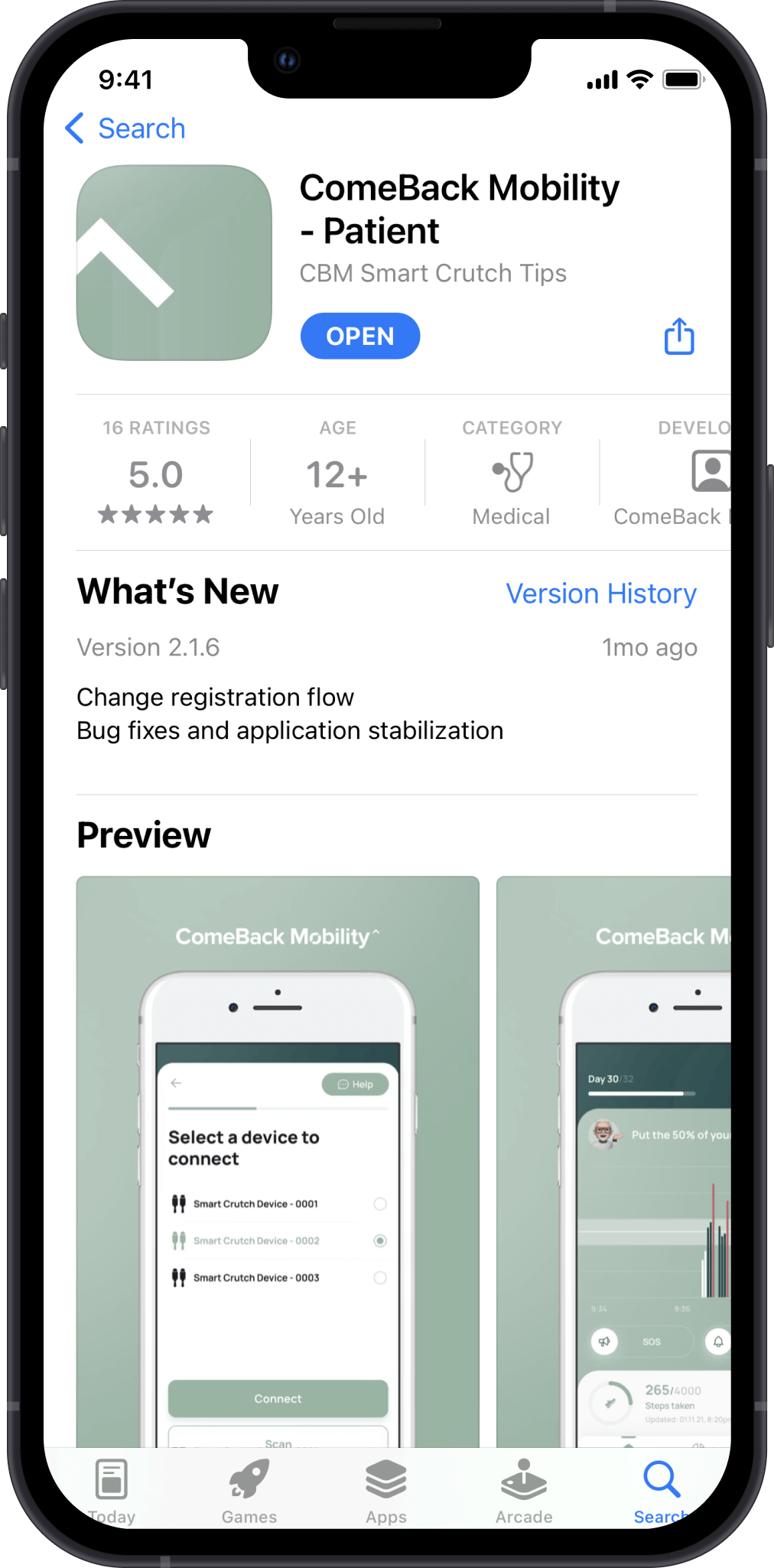

Find “ComeBack Mobility – Patient” App on Apple AppStore or Google PlayMarket

Install app

Authorization

Authorization

Open application

Use your mobile phone number to receive a one-time password via text message, for additional security

Initial Connect
Initial Connect

Initial Connect

Once you have Smart Tips in front of you:

Open “Comeback Mobility – Patient” app

Tap “Connect” button

Allow app access to Bluetooth

Find your Smart Tips in device list, select it and tap the “Connect” button

Smart Crutch Tips App

Once connection is successfully established, program set up screen will be displayed

Carefully explore light indicator descriptions.
Learn more in the following section

7Check Indication Patterns
Smart Crutch Tips App
9Follow Your Rehabilitation Program-1

Review your rehabilitation program in a tab labeled “Program”

Strictly follow weight-bearing recommendations for each program week

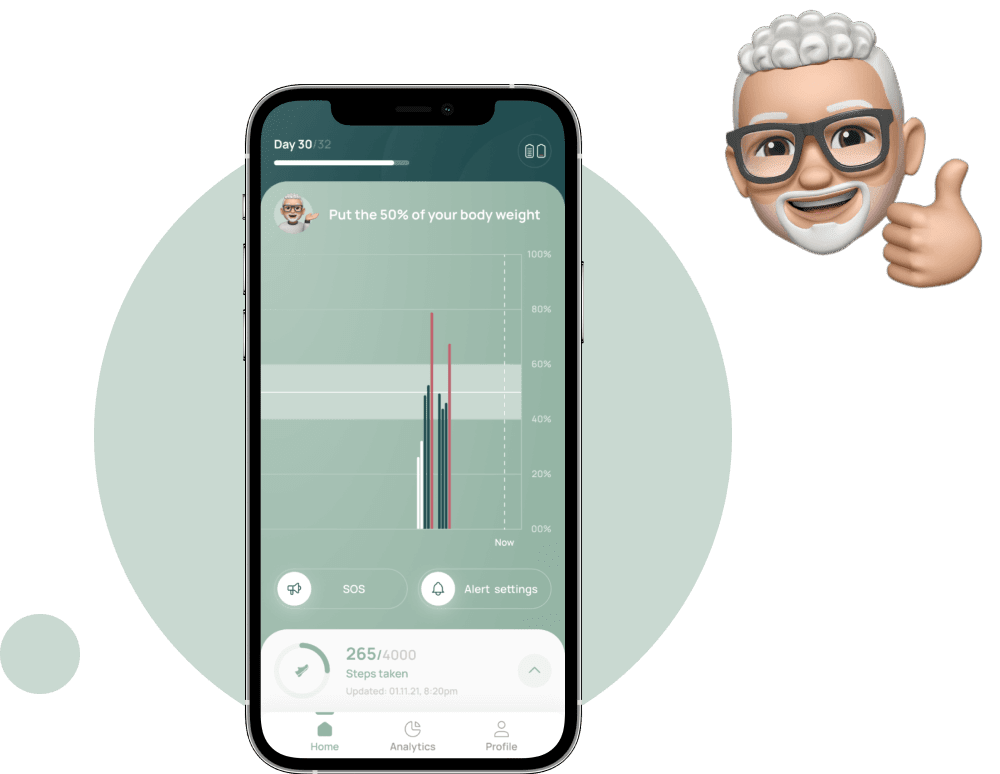

Track daily progress in the chart on the home tab

“Comeback Mobility – Patient” app

Smart Crutch Tips App
Smart Crutch Tips App

Installation

Find “ComeBack Mobility – Patient” App on Apple AppStore or Google PlayMarket

Install app

Authorization

Authorization

Open application

Use your mobile phone number to receive a one-time password via text message, for additional security

Initial Connect
Initial Connect

Initial Connect

Once you have Smart Tips in front of you:

Open “Comeback Mobility – Patient” app

Tap “Connect” button

Allow app access to Bluetooth

Find your Smart Tips in device list, select it and tap the “Connect” button

Smart Crutch Tips App

Once connection is successfully established, program set up screen will be displayed

7Check Indication Patterns

Carefully explore light indicator descriptions.
Learn more in the following section

Smart Crutch Tips App
9Follow Your Rehabilitation Program-1

Review your rehabilitation program in a tab labeled “Program”

Strictly follow weight-bearing recommendations for each program week

Track daily progress in the chart on the home tab

Download the
“ComeBack Mobility – Patient” App and follow the instruction

Сlick “Connect” on the Main screen

On the next screen, click “Allow”
to find ComeBack Mobility
Smart Crutch Tips

Find Smart Crutch Device on your Bluetooth screen
Choose the name and click “Connect”

*If Smart Crutch Tips are not found, click “Scan”, wait 2 minutes, and repeat Step 4. If the issue is not resolved, please contact Customer Support

Support:

Congratulations! Your Smart Crutch Tips are now ready to work

Components

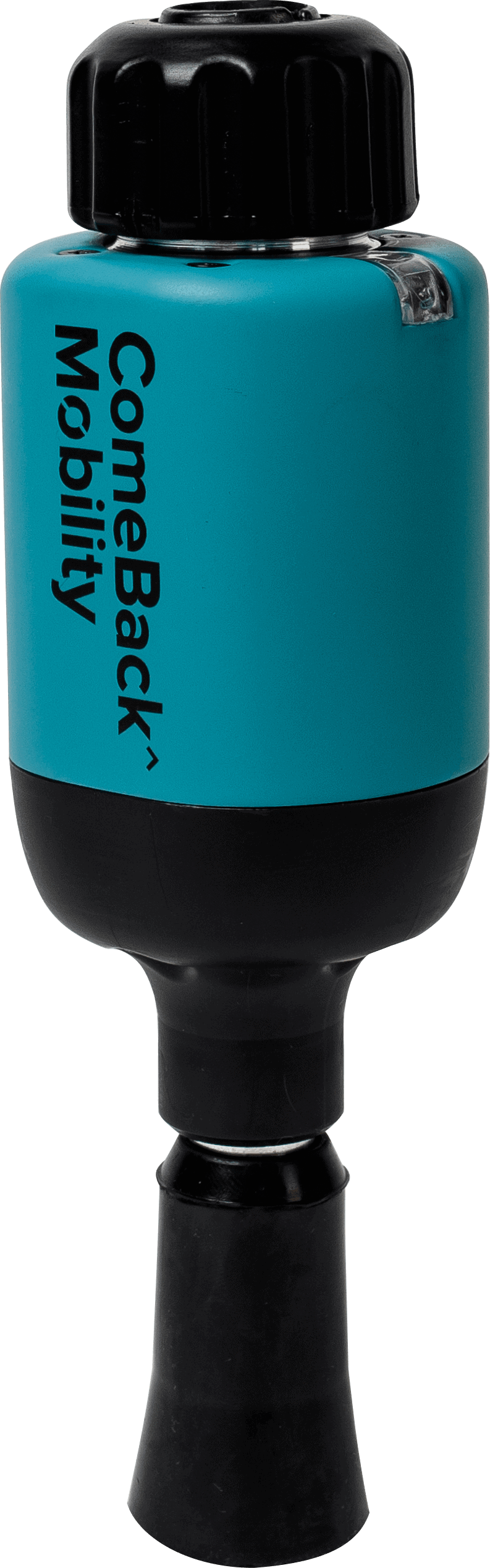

Crutch-tips-Device-Light

Universal nut for crutches with tip diameters of 0.6″ to 0.86″

Used in fully unmounted mode for thick crutches

Provides feedback on weight-bearing (WB) level: excessive, insufficient, or recommended WB

Pre-installed to prevent slipping

Light indication

Indication for each step

3 red flashings — excessive weight-bearing
Meaning: Need to put more weight on crutches

3 blue flashings — insufficient weight-bearing
Meaning: Need to put more weight on leg

3 green flashings — recommended weight on the leg
Meaning: Patient puts correct (recommended) weight on the leg

Power-saving mode

1 alternate blue and green flashing — energy-saving mode is off
Meaning: When tips are stationary for 2 minutes, energy-saving mode turns on automatically

Battery Charge Level

3 yellow flashings — tips charge level 20% – 10%
Meaning: Recommend charging crutch tips

Steady red light — tips charge level 10% – 0%
Meaning: Tips are discharged. Device must be charged to continue use

White flashing — charge is in progress
Meaning: When white flashing stops – device is fully charged

Steady green light — the device is fully charged
Meaning: You can disconnect the charger now and continue using the tips

Tips are faulty (out of order)

Alternate red and blue flashing 30 times, upon awakening from sleep
Meaning: Crutch tips cannot be used. Please contact Customer Support:
ceo@comebackmobility.com
312 927 4108

Alternate red and blue flashing 30 times, upon awakening from sleep

Meaning: Crutch tips cannot be used. Please contact Customer Support:
ceo@comebackmobility.com
312 927 4108

Charging Device

Charging Device

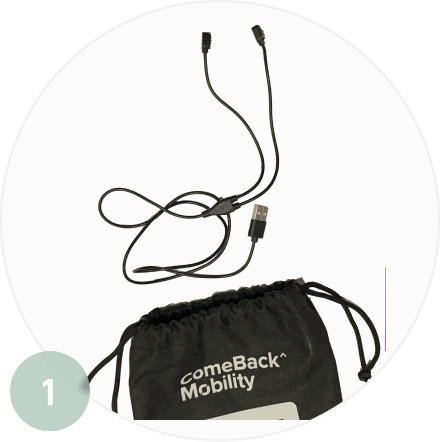

Get charging cable from packaging and any charging brick (recommended 10 watt (W) or greater)

Charging Device

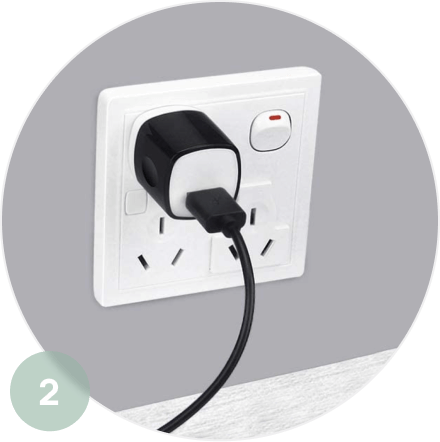

Connect provided charging cable to any charging brick and plug it in

Charging Device

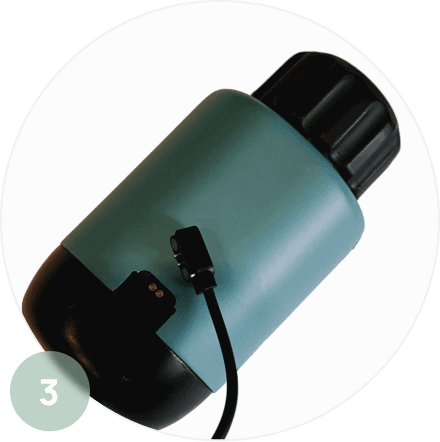

Join magnetic connectors to Smart Tips

Charging Device

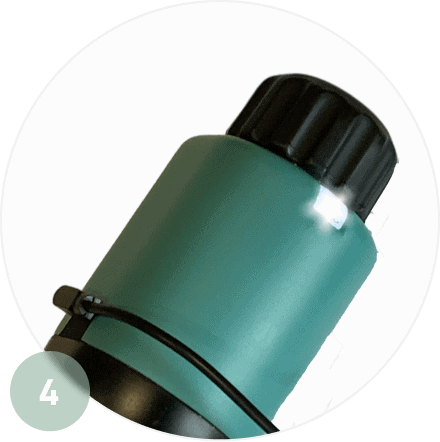

A white blinking light indicates charging has started

Charging Device

Charging Device

Get charging cable from packaging and any charging brick (recommended 10 watt (W) or greater)

Charging Device

Connect provided charging cable to any charging brick and plug it in

Charging Device

Join magnetic connectors to Smart Tips

Charging Device

A white blinking light indicates charging has started

Stand – alone tips mode

You can use the feedback on the Smart Crutch Tips for rehabilitation

Connect with your smartphone to the crutch tips after completing registration

The crutch tips memorize
the rehabilitation program

Every 7 days you have to connect to your smartphone to update the program on the crutch tips

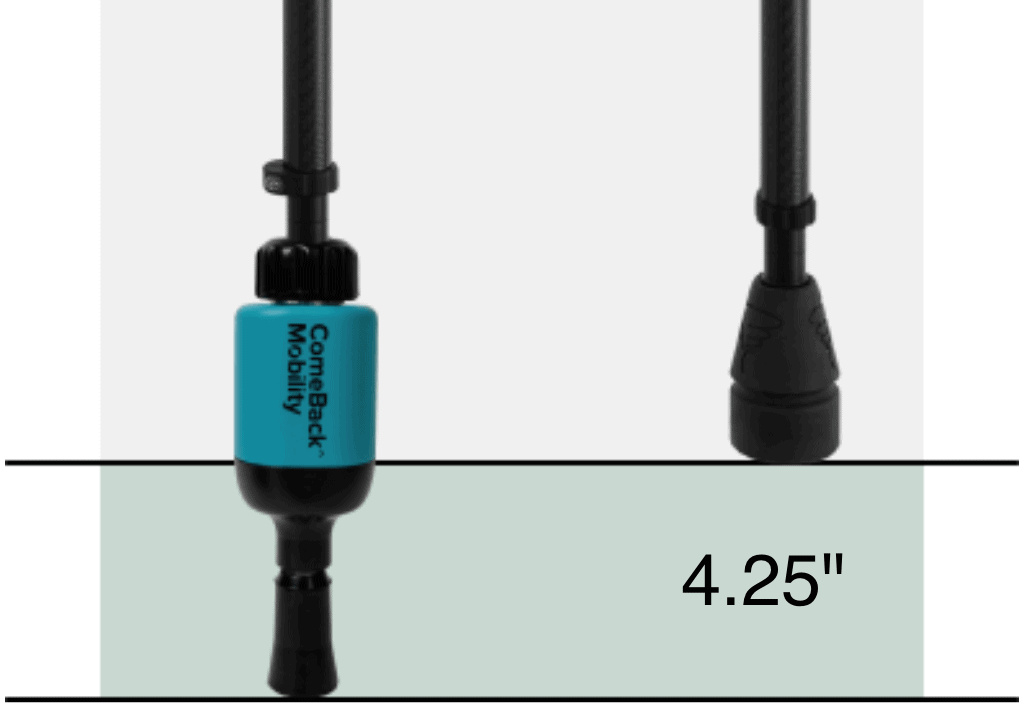

Height of crutches

Smart Crutch Tip LENGTHENS the crutch by 4.25 inches

Height of crutches

Smart Crutch Tip LENGTHENS the crutch by 4.25 inches

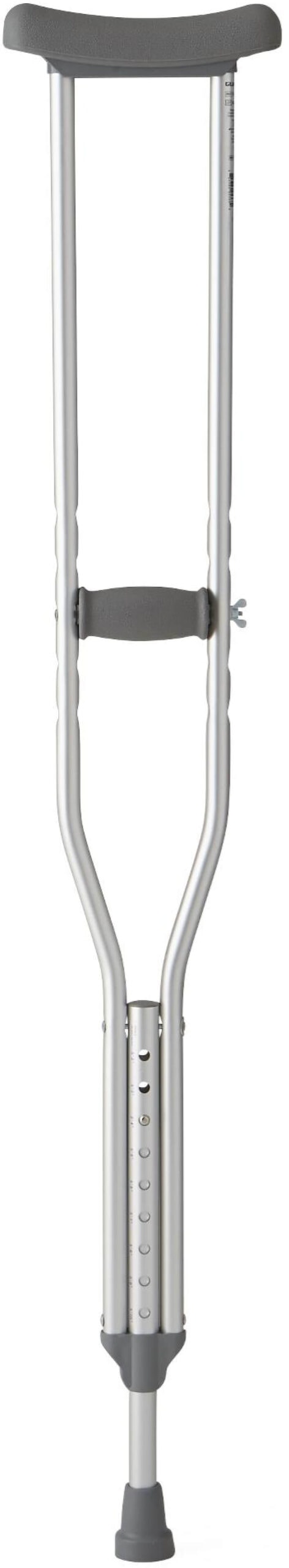

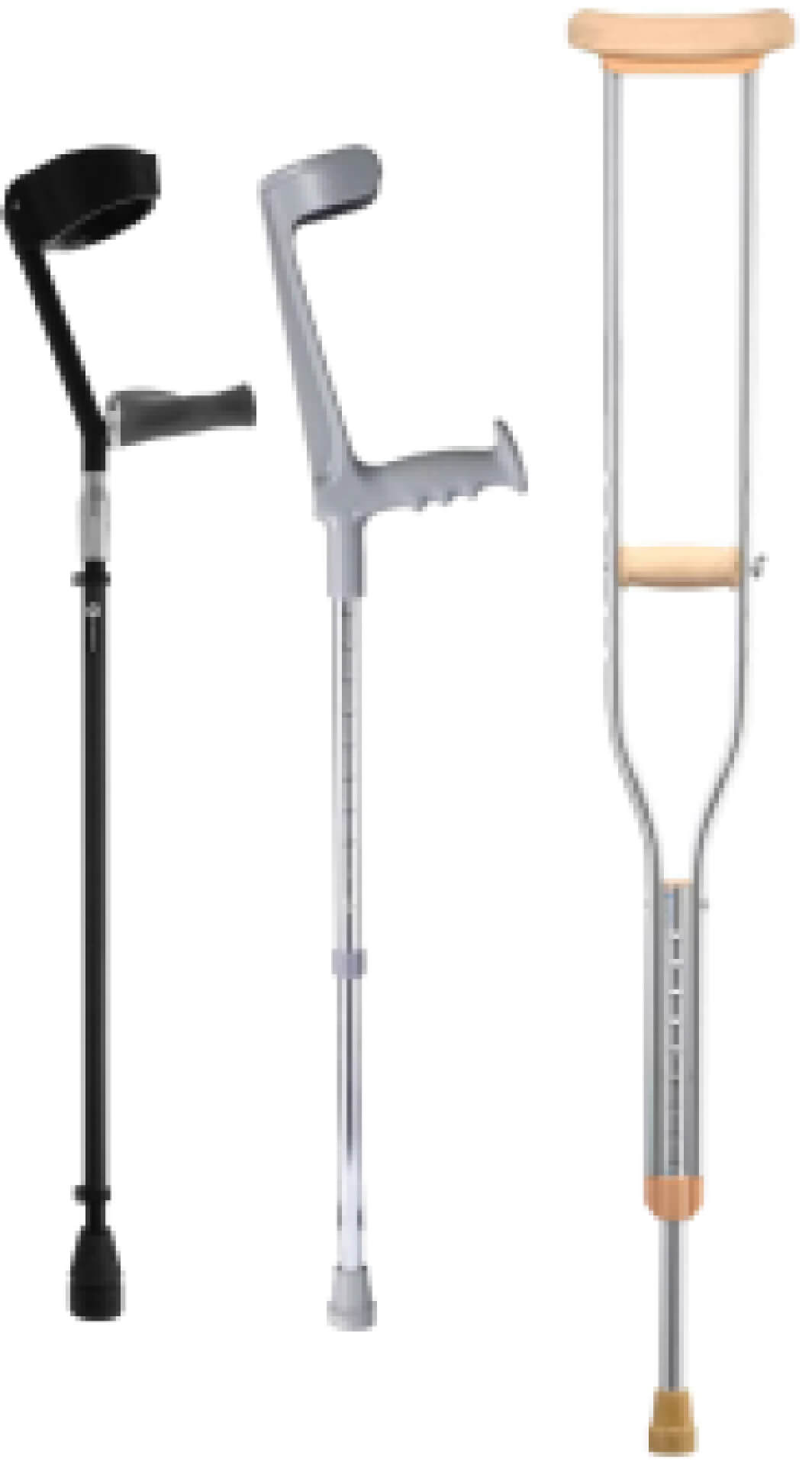

Crutch Requirements

Fit aluminium forearm and
underarm crutches

Do not fit old school
(wooden, iron) crutches

Crutch Requirements

Fit aluminium forearm and
underarm crutches

Do not fit old school
(wooden, iron) crutches
